2G-50-Writer-Retest: everything (scoped)
client side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
server side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
all sides baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
highlighted cell(s) above show current scope
links point to other scopes

1. Load

Load Count
(xact/sec)		 Volume
(Mbits/sec)
offered 19.53 1.52
measured 19.53 1.51

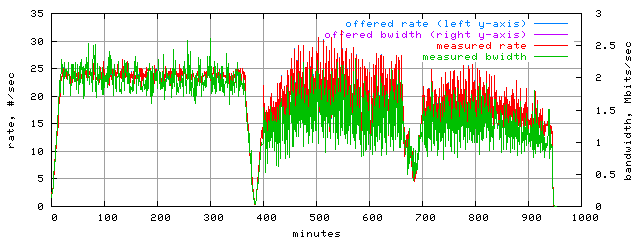

Load trace
load.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

The load table shows offered and measured load from server side point of view. Offered load statistics are based on the request stream. Measured load statistics are based on reply messages. The 'count' column depicts the number of requests or responses.

The 'volume' column is a little bit more tricky to interpret. Offered volume is reply bandwidth that would have been required to support offered load. This volume is computed as request rate multiplied by measured mean response size. Measured volume is the actual or measured reply bandwidth.




2. Hit Ratios

Hit Ratios DHR
(%)		 BHR
(%)
offered 0.00 0.00
measured 0.00 0.00

The server-side hit ratios should always be zero. If a request reaches a server, it is, by definition, a miss.

A better way to measure hit ratio is to compare client- and server-side traffic. A hit ratio table based on such a comparison is available elsewhere.




3. Concurrent HTTP transaction level table

Transaction state Number of times Mean concurrency level
entered left
active 1116626.00 1116626.00 1.08
waiting 0.00 0.00 0.00

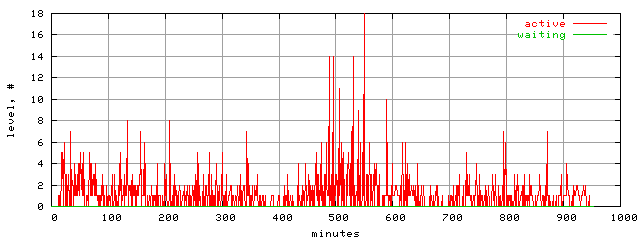

concurrent HTTP transaction level trace
xact.level.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

TBD.




4. Concurrent HTTP/TCP connection level table

Connection state Number of times Mean concurrency level
entered left
open 1116626.00 1116626.00 52.38
established 1116626.00 1116626.00 52.24

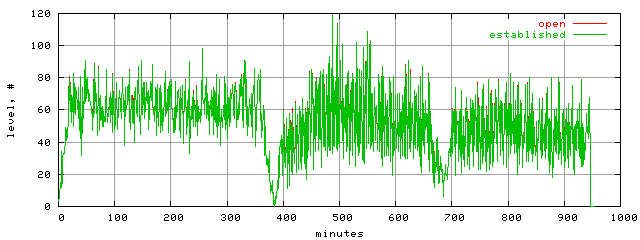

concurrent HTTP/TCP connection level trace
conn.level.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

TBD.




5. Population level table

Number of agents Mean population level
created destroyed
513.00 513.00 0.00

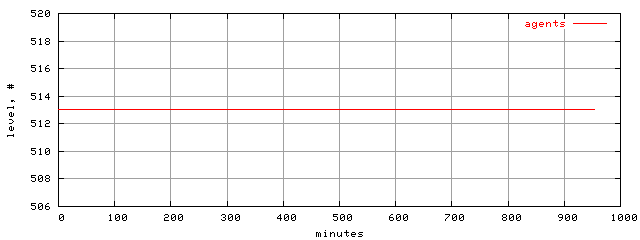

population level trace
populus.level.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

Populus is a set of all live robot or server agents. While alive, an agent may participate in HTTP transactions or remain idle.




6. Traffic stream table

Stream Contribution Rates Totals
Count
(%)		 Volume
(%)		 Count
(xact/sec)		 Volume
(Mbits/sec)		 Count
(xact,M)		 Volume
(Gbyte)
"foreign" 0.00 0.00 0.00 0.00 0.00 0.00
"image" 58.99 28.56 11.51 0.43 0.66 3.02
"HTML" 13.34 11.73 2.60 0.18 0.15 1.24
"download" 0.44 11.52 0.09 0.17 0.00 1.22
"applet" 0.25 0.12 0.05 0.00 0.00 0.01
"other" 15.78 40.12 3.08 0.61 0.18 4.24
all content types 88.80 92.05 17.33 1.39 0.99 9.73
hits 0.00 0.00 0.00 0.00 0.00 0.00
misses 88.80 92.05 17.33 1.39 0.99 9.73
hits and misses 88.80 92.05 17.33 1.39 0.99 9.73
ims/200 2.88 2.96 0.56 0.04 0.03 0.31
ims/304 1.86 0.02 0.36 0.00 0.02 0.00
all ims 4.74 2.98 0.93 0.05 0.05 0.32
cachable 62.43 65.52 12.18 0.99 0.70 6.93
not cachable 26.38 26.53 5.15 0.40 0.29 2.80
cachable and not 88.80 92.05 17.33 1.39 0.99 9.73
fill 62.43 65.52 12.18 0.99 0.70 6.93
reload 6.00 4.40 1.17 0.07 0.07 0.47
abort 0.09 0.02 0.02 0.00 0.00 0.00
redirected request 0.00 0.00 0.00 0.00 0.00 0.00
reply to redirect 0.00 0.00 0.00 0.00 0.00 0.00
HEAD 0.02 0.00 0.00 0.00 0.00 0.00
POST 0.44 0.57 0.09 0.01 0.00 0.06
PUT 0.00 0.00 0.00 0.00 0.00 0.00
all non-gets 0.45 0.57 0.09 0.01 0.01 0.06
all replies 100.00 100.00 19.51 1.51 1.12 10.57

The 'Stream' table provides count and volume statistics for many classes of transactions. The 'Contribution' columns show count- and volume-based portions of all transactions. The 'Rates' columns show throughput and bandwidth measurements. The 'Totals' columns contain the total number of transactions and the total volume (a sum of individual response sizes) for each stream.

Note that some streams are a combination of other streams. For example, the 'all ims' stream contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' stream) or '304 Not Modified' (the 'ims/304' stream) responses.

Many combination streams, such as 'all content types' or 'hits and misses' stream, contribute less than 100% because properties like content type or hit status are distinguished for 'basic' transactions only. A basic transactions is a simple HTTP GET request resulted in a '200 OK' response. Various special transactions such as IMS or aborts do not belong to the 'basic' category.

The 'Object' table contains corresponding response time and size statistics for streams.




7. Object kind table

Object Response time (msec) Size (KBytes)
Min Mean Max Min Mean Max
"foreign" n/a n/a n/a n/a n/a n/a
"image" n/a n/a n/a 0.27 4.81 54.26
"HTML" n/a n/a n/a 0.31 8.74 63.91
"download" n/a n/a n/a 18.28 262.48 1304.16
"applet" n/a n/a n/a 0.81 4.81 25.82
"other" n/a n/a n/a 7.67 25.26 72.65
all content types n/a n/a n/a 0.27 10.30 1304.16
hits n/a n/a n/a n/a n/a n/a
misses 0.00 2571.19 656205.00 0.27 10.30 1304.16
hits and misses 0.00 2571.19 656205.00 0.27 10.30 1304.16
ims/200 0.00 2600.49 372230.00 0.00 10.20 1304.11
ims/304 0.00 2517.99 124917.00 0.06 0.11 0.13
all ims 0.00 2568.14 372230.00 0.00 6.24 1304.11
cachable 0.00 2573.88 656205.00 0.32 10.43 1304.16
not cachable 0.00 2564.82 535404.00 0.27 10.00 451.74
cachable and not 0.00 2571.19 656205.00 0.27 10.30 1304.16
fill 0.00 2573.88 656205.00 0.32 10.43 1304.16
reload 0.00 2551.31 292456.00 0.00 7.29 1304.11
abort 0.00 2518.67 7031.00 0.00 2.22 226.25
redirected request n/a n/a n/a n/a n/a n/a
reply to redirect n/a n/a n/a n/a n/a n/a
HEAD 2.00 2511.40 5395.00 0.27 0.32 0.40
POST 0.00 2979.26 300015.00 0.00 12.88 1304.11
PUT n/a n/a n/a n/a n/a n/a
all non-gets 0.00 2963.54 300015.00 0.00 12.46 1304.11
all replies 0.00 2571.63 656205.00 0.00 9.94 1304.16

The 'Object' table provides response time and response size statistics for many classes of transactions.

Note that some classes are a combination of other classes. For example, the 'all ims' class contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' class) or '304 Not Modified' (the 'ims/304' class) responses.

Some statistics may not be available because either no objects of the corresponding class were seen during the test or no facilities to collect the stats exist for the class. The former can be verified using a 'Stream' table.




8. Errors

No errors detected in the given scope.


9. Object '"foreign"'

No instances of this object class were observed or recorded in the given scope.


This object class represents one of the content types specified in the PGL workload file and labeled there as "foreign".


10. Object '"image"'

contribution: 58.99% by count and 28.56% by volume
rates: 11.51xact/sec or 0.43Mbits/sec
totals: 0.66Mxact and 3.02GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.27KBytes min, 4.81KBytes mean, and 54.26KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "image".


11. Object '"HTML"'

contribution: 13.34% by count and 11.73% by volume
rates: 2.60xact/sec or 0.18Mbits/sec
totals: 0.15Mxact and 1.24GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.31KBytes min, 8.74KBytes mean, and 63.91KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "HTML".


12. Object '"download"'

contribution: 0.44% by count and 11.52% by volume
rates: 0.09xact/sec or 0.17Mbits/sec
totals: 0.00Mxact and 1.22GByte
response time: n/a min, n/a mean, and n/a max
response size: 18.28KBytes min, 262.48KBytes mean, and 1304.16KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "download".


13. Object '"applet"'

contribution: 0.25% by count and 0.12% by volume
rates: 0.05xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.01GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.81KBytes min, 4.81KBytes mean, and 25.82KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "applet".


14. Object '"other"'

contribution: 15.78% by count and 40.12% by volume
rates: 3.08xact/sec or 0.61Mbits/sec
totals: 0.18Mxact and 4.24GByte
response time: n/a min, n/a mean, and n/a max
response size: 7.67KBytes min, 25.26KBytes mean, and 72.65KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "other".


15. Object 'all content types'

contribution: 88.80% by count and 92.05% by volume
rates: 17.33xact/sec or 1.39Mbits/sec
totals: 0.99Mxact and 9.73GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.27KBytes min, 10.30KBytes mean, and 1304.16KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all replies' class.




16. Object 'hits'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'hits and misses' class.




17. Object 'misses'

contribution: 88.80% by count and 92.05% by volume
rates: 17.33xact/sec or 1.39Mbits/sec
totals: 0.99Mxact and 9.73GByte
response time: 0.00msec min, 2571.19msec mean, and 656205.00msec max
response size: 0.27KBytes min, 10.30KBytes mean, and 1304.16KBytes max
response time distribution
object.misses.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

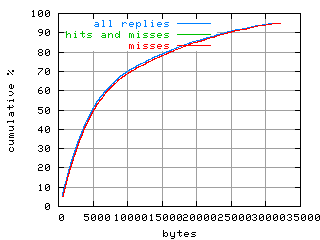

object size distribution
object.misses.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.misses.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'hits and misses' class.




18. Object 'hits and misses'

contribution: 88.80% by count and 92.05% by volume
rates: 17.33xact/sec or 1.39Mbits/sec
totals: 0.99Mxact and 9.73GByte
response time: 0.00msec min, 2571.19msec mean, and 656205.00msec max
response size: 0.27KBytes min, 10.30KBytes mean, and 1304.16KBytes max

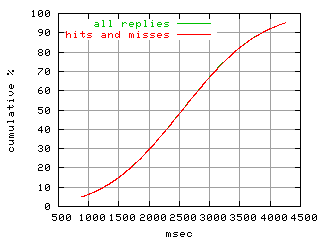

response time distribution
object.hits_and_misses.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

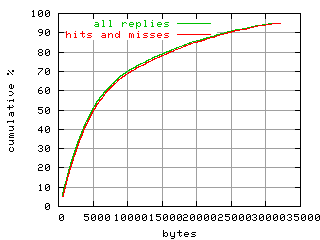

object size distribution
object.hits_and_misses.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

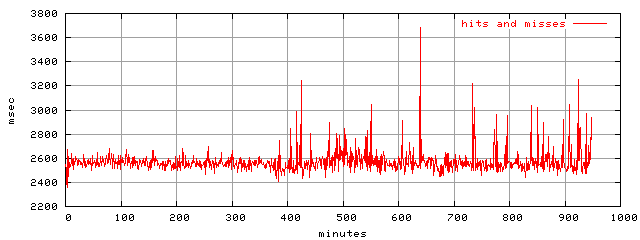

response time trace
object.hits_and_misses.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




19. Object 'ims/200'

contribution: 2.88% by count and 2.96% by volume
rates: 0.56xact/sec or 0.04Mbits/sec
totals: 0.03Mxact and 0.31GByte
response time: 0.00msec min, 2600.49msec mean, and 372230.00msec max
response size: 0.00KBytes min, 10.20KBytes mean, and 1304.11KBytes max

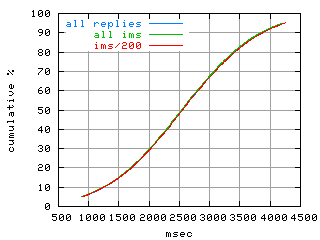

response time distribution
object.ims_sc200.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

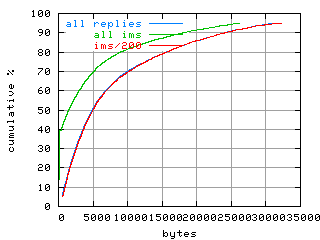

object size distribution
object.ims_sc200.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




20. Object 'ims/304'

contribution: 1.86% by count and 0.02% by volume
rates: 0.36xact/sec or 0.00Mbits/sec
totals: 0.02Mxact and 0.00GByte
response time: 0.00msec min, 2517.99msec mean, and 124917.00msec max
response size: 0.06KBytes min, 0.11KBytes mean, and 0.13KBytes max

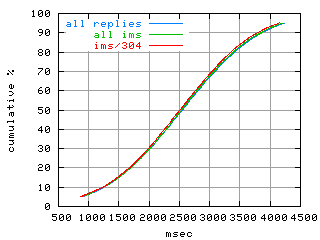

response time distribution
object.ims_sc304.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

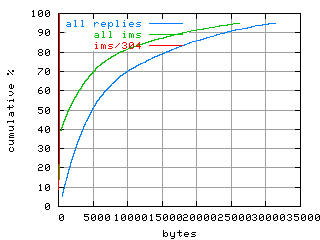

object size distribution
object.ims_sc304.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




21. Object 'all ims'

contribution: 4.74% by count and 2.98% by volume
rates: 0.93xact/sec or 0.05Mbits/sec
totals: 0.05Mxact and 0.32GByte
response time: 0.00msec min, 2568.14msec mean, and 372230.00msec max
response size: 0.00KBytes min, 6.24KBytes mean, and 1304.11KBytes max
response time distribution
object.ims_scAll.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

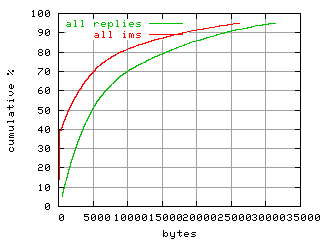

object size distribution
object.ims_scAll.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

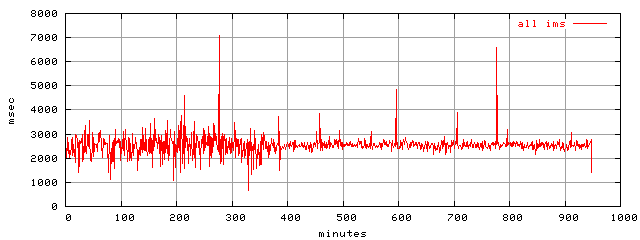

response time trace
object.ims_scAll.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




22. Object 'cachable'

contribution: 62.43% by count and 65.52% by volume
rates: 12.18xact/sec or 0.99Mbits/sec
totals: 0.70Mxact and 6.93GByte
response time: 0.00msec min, 2573.88msec mean, and 656205.00msec max
response size: 0.32KBytes min, 10.43KBytes mean, and 1304.16KBytes max

No response time and size histograms were collected or stored for this object class.

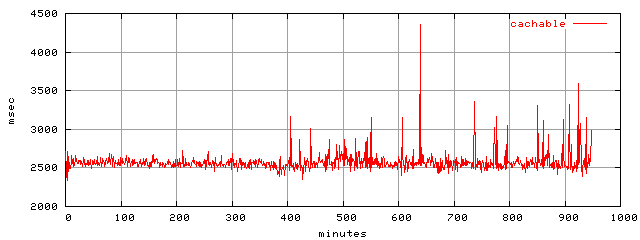

response time trace
object.cachable.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




23. Object 'not cachable'

contribution: 26.38% by count and 26.53% by volume
rates: 5.15xact/sec or 0.40Mbits/sec
totals: 0.29Mxact and 2.80GByte
response time: 0.00msec min, 2564.82msec mean, and 535404.00msec max
response size: 0.27KBytes min, 10.00KBytes mean, and 451.74KBytes max

No response time and size histograms were collected or stored for this object class.

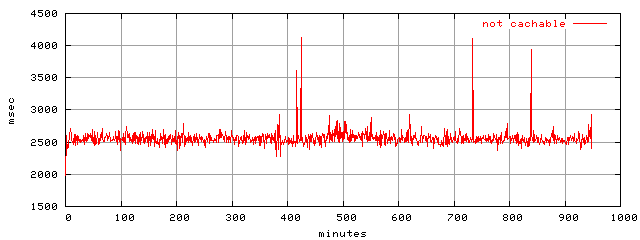

response time trace
object.uncachable.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




24. Object 'cachable and not'

contribution: 88.80% by count and 92.05% by volume
rates: 17.33xact/sec or 1.39Mbits/sec
totals: 0.99Mxact and 9.73GByte
response time: 0.00msec min, 2571.19msec mean, and 656205.00msec max
response size: 0.27KBytes min, 10.30KBytes mean, and 1304.16KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.all_cachable.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




25. Object 'fill'

contribution: 62.43% by count and 65.52% by volume
rates: 12.18xact/sec or 0.99Mbits/sec
totals: 0.70Mxact and 6.93GByte
response time: 0.00msec min, 2573.88msec mean, and 656205.00msec max
response size: 0.32KBytes min, 10.43KBytes mean, and 1304.16KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.fill.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




26. Object 'reload'

contribution: 6.00% by count and 4.40% by volume
rates: 1.17xact/sec or 0.07Mbits/sec
totals: 0.07Mxact and 0.47GByte
response time: 0.00msec min, 2551.31msec mean, and 292456.00msec max
response size: 0.00KBytes min, 7.29KBytes mean, and 1304.11KBytes max
response time distribution
object.reload.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

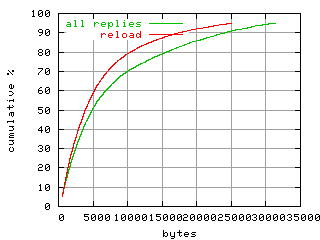

object size distribution
object.reload.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.reload.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




27. Object 'abort'

contribution: 0.09% by count and 0.02% by volume
rates: 0.02xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 0.00msec min, 2518.67msec mean, and 7031.00msec max
response size: 0.00KBytes min, 2.22KBytes mean, and 226.25KBytes max

No response time and size histograms were collected or stored for this object class.

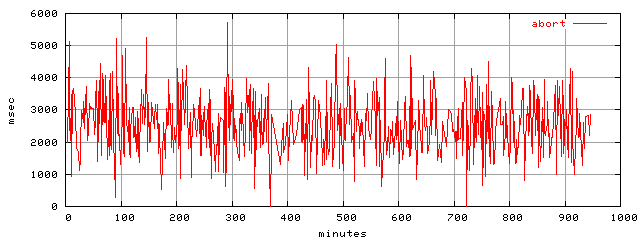

response time trace
object.abort.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




28. Object 'redirected request'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




29. Object 'reply to redirect'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




30. Object 'HEAD'

contribution: 0.02% by count and 0.00% by volume
rates: 0.00xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2511.40msec mean, and 5395.00msec max
response size: 0.27KBytes min, 0.32KBytes mean, and 0.40KBytes max

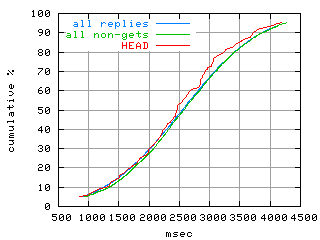

response time distribution
object.method_head.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.method_head.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.method_head.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




31. Object 'POST'

contribution: 0.44% by count and 0.57% by volume
rates: 0.09xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.06GByte
response time: 0.00msec min, 2979.26msec mean, and 300015.00msec max
response size: 0.00KBytes min, 12.88KBytes mean, and 1304.11KBytes max
response time distribution
object.method_post.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.method_post.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

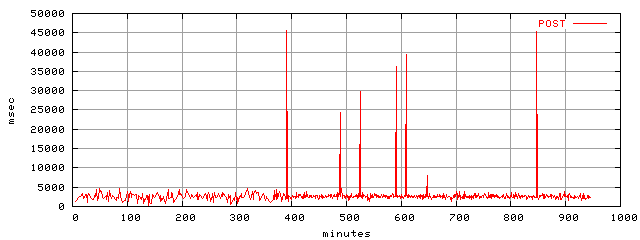

response time trace
object.method_post.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




32. Object 'PUT'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all non-gets' class.




33. Object 'all non-gets'

contribution: 0.45% by count and 0.57% by volume
rates: 0.09xact/sec or 0.01Mbits/sec
totals: 0.01Mxact and 0.06GByte
response time: 0.00msec min, 2963.54msec mean, and 300015.00msec max
response size: 0.00KBytes min, 12.46KBytes mean, and 1304.11KBytes max
response time distribution
object.method_all.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.method_all.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.method_all.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




34. Object 'all replies'

contribution: 100.00% by count and 100.00% by volume
rates: 19.51xact/sec or 1.51Mbits/sec
totals: 1.12Mxact and 10.57GByte
response time: 0.00msec min, 2571.63msec mean, and 656205.00msec max
response size: 0.00KBytes min, 9.94KBytes mean, and 1304.16KBytes max
response time distribution
object.rep.rptm.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.rep.size.fig.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

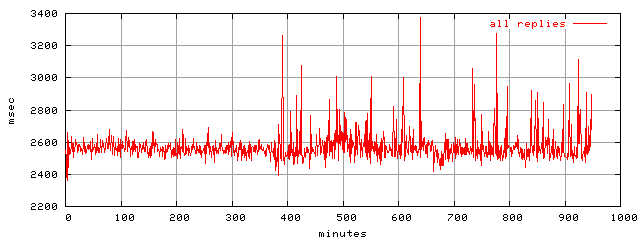

response time trace
object.rep.rptm.trace.scope=sides=server__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.
