2G-50-Writer-Retest: everything (scoped)
client side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
server side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
all sides baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
highlighted cell(s) above show current scope
links point to other scopes

1. Load

Load Count
(xact/sec)		 Volume
(Mbits/sec)
offered 19.45 1.41
measured 19.45 1.40

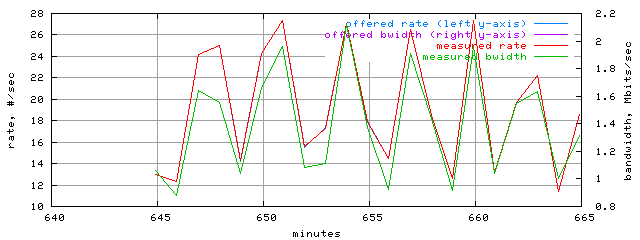

Load trace
load.trace.scope=sides=server__phases=dec1

The load table shows offered and measured load from server side point of view. Offered load statistics are based on the request stream. Measured load statistics are based on reply messages. The 'count' column depicts the number of requests or responses.

The 'volume' column is a little bit more tricky to interpret. Offered volume is reply bandwidth that would have been required to support offered load. This volume is computed as request rate multiplied by measured mean response size. Measured volume is the actual or measured reply bandwidth.




2. Hit Ratios

Hit Ratios DHR
(%)		 BHR
(%)
offered 0.00 0.00
measured 0.00 0.00

The server-side hit ratios should always be zero. If a request reaches a server, it is, by definition, a miss.

A better way to measure hit ratio is to compare client- and server-side traffic. A hit ratio table based on such a comparison is available elsewhere.




3. Concurrent HTTP transaction level table

Transaction state Number of times Mean concurrency level
entered left
active 23387.00 23388.00 0.91
waiting 0.00 0.00 0.00

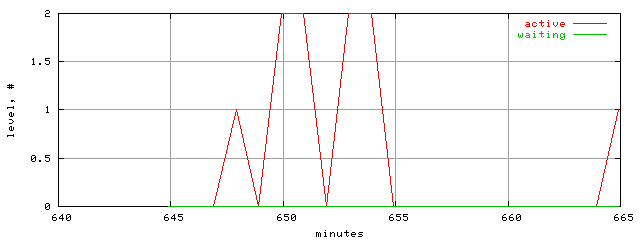

concurrent HTTP transaction level trace
xact.level.trace.scope=sides=server__phases=dec1

TBD.




4. Concurrent HTTP/TCP connection level table

Connection state Number of times Mean concurrency level
entered left
open 23390.00 23389.00 51.53
established 23390.00 23389.00 51.45
concurrent HTTP/TCP connection level trace
conn.level.trace.scope=sides=server__phases=dec1

TBD.




5. Population level table

Number of agents Mean population level
created destroyed
0.00 0.00 513.00
population level trace
populus.level.trace.scope=sides=server__phases=dec1

Populus is a set of all live robot or server agents. While alive, an agent may participate in HTTP transactions or remain idle.




6. Traffic stream table

Stream Contribution Rates Totals
Count
(%)		 Volume
(%)		 Count
(xact/sec)		 Volume
(Mbits/sec)		 Count
(xact,M)		 Volume
(Gbyte)
"foreign" 0.00 0.00 0.00 0.00 0.00 0.00
"image" 55.88 29.29 10.86 0.41 0.01 0.06
"HTML" 10.64 10.07 2.07 0.14 0.00 0.02
"download" 0.39 10.38 0.08 0.15 0.00 0.02
"applet" 0.24 0.10 0.05 0.00 0.00 0.00
"other" 12.81 35.08 2.49 0.49 0.00 0.07
all content types 79.97 84.91 15.54 1.19 0.02 0.17
hits 0.00 0.00 0.00 0.00 0.00 0.00
misses 79.97 84.91 15.54 1.19 0.02 0.17
hits and misses 79.97 84.91 15.54 1.19 0.02 0.17
ims/200 5.47 5.44 1.06 0.08 0.00 0.01
ims/304 3.17 0.04 0.62 0.00 0.00 0.00
all ims 8.63 5.48 1.68 0.08 0.00 0.01
cachable 47.65 52.29 9.26 0.73 0.01 0.11
not cachable 32.32 32.62 6.28 0.46 0.01 0.07
cachable and not 79.97 84.91 15.54 1.19 0.02 0.17
fill 47.65 52.29 9.26 0.73 0.01 0.11
reload 10.62 8.59 2.06 0.12 0.00 0.02
abort 0.09 0.04 0.02 0.00 0.00 0.00
redirected request 0.00 0.00 0.00 0.00 0.00 0.00
reply to redirect 0.00 0.00 0.00 0.00 0.00 0.00
HEAD 0.03 0.00 0.00 0.00 0.00 0.00
POST 0.75 1.02 0.15 0.01 0.00 0.00
PUT 0.00 0.00 0.00 0.00 0.00 0.00
all non-gets 0.77 1.02 0.15 0.01 0.00 0.00
all replies 100.00 100.00 19.43 1.40 0.02 0.21

The 'Stream' table provides count and volume statistics for many classes of transactions. The 'Contribution' columns show count- and volume-based portions of all transactions. The 'Rates' columns show throughput and bandwidth measurements. The 'Totals' columns contain the total number of transactions and the total volume (a sum of individual response sizes) for each stream.

Note that some streams are a combination of other streams. For example, the 'all ims' stream contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' stream) or '304 Not Modified' (the 'ims/304' stream) responses.

Many combination streams, such as 'all content types' or 'hits and misses' stream, contribute less than 100% because properties like content type or hit status are distinguished for 'basic' transactions only. A basic transactions is a simple HTTP GET request resulted in a '200 OK' response. Various special transactions such as IMS or aborts do not belong to the 'basic' category.

The 'Object' table contains corresponding response time and size statistics for streams.




7. Object kind table

Object Response time (msec) Size (KBytes)
Min Mean Max Min Mean Max
"foreign" n/a n/a n/a n/a n/a n/a
"image" n/a n/a n/a 0.27 4.85 40.09
"HTML" n/a n/a n/a 0.31 8.74 63.86
"download" n/a n/a n/a 18.28 243.74 1304.11
"applet" n/a n/a n/a 0.81 3.90 9.46
"other" n/a n/a n/a 7.67 25.31 67.94
all content types n/a n/a n/a 0.27 9.82 1304.11
hits n/a n/a n/a n/a n/a n/a
misses 0.00 2565.05 22519.00 0.27 9.82 1304.11
hits and misses 0.00 2565.05 22519.00 0.27 9.82 1304.11
ims/200 1.00 2552.45 7748.00 0.00 9.21 451.64
ims/304 1.00 2480.56 5262.00 0.06 0.11 0.13
all ims 1.00 2526.08 7748.00 0.00 5.87 451.64
cachable 0.00 2572.42 22519.00 0.32 10.15 1304.11
not cachable 0.00 2554.17 7492.00 0.27 9.33 113.04
cachable and not 0.00 2565.05 22519.00 0.27 9.82 1304.11
fill 0.00 2572.42 22519.00 0.32 10.15 1304.11
reload 0.00 2587.21 23764.00 0.00 7.48 1304.11
abort 1055.00 2654.09 4209.00 0.00 4.11 45.25
redirected request n/a n/a n/a n/a n/a n/a
reply to redirect n/a n/a n/a n/a n/a n/a
HEAD 2.00 2361.17 4043.00 0.29 0.32 0.35
POST 334.00 2867.83 49895.00 0.36 12.53 451.64
PUT n/a n/a n/a n/a n/a n/a
all non-gets 2.00 2851.04 49895.00 0.29 12.13 451.64
all replies 0.00 2566.25 49895.00 0.00 9.25 1304.11

The 'Object' table provides response time and response size statistics for many classes of transactions.

Note that some classes are a combination of other classes. For example, the 'all ims' class contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' class) or '304 Not Modified' (the 'ims/304' class) responses.

Some statistics may not be available because either no objects of the corresponding class were seen during the test or no facilities to collect the stats exist for the class. The former can be verified using a 'Stream' table.




8. Errors

No errors detected in the given scope.


9. Object '"foreign"'

No instances of this object class were observed or recorded in the given scope.


This object class represents one of the content types specified in the PGL workload file and labeled there as "foreign".


10. Object '"image"'

contribution: 55.88% by count and 29.29% by volume
rates: 10.86xact/sec or 0.41Mbits/sec
totals: 0.01Mxact and 0.06GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.27KBytes min, 4.85KBytes mean, and 40.09KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "image".


11. Object '"HTML"'

contribution: 10.64% by count and 10.07% by volume
rates: 2.07xact/sec or 0.14Mbits/sec
totals: 0.00Mxact and 0.02GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.31KBytes min, 8.74KBytes mean, and 63.86KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "HTML".


12. Object '"download"'

contribution: 0.39% by count and 10.38% by volume
rates: 0.08xact/sec or 0.15Mbits/sec
totals: 0.00Mxact and 0.02GByte
response time: n/a min, n/a mean, and n/a max
response size: 18.28KBytes min, 243.74KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "download".


13. Object '"applet"'

contribution: 0.24% by count and 0.10% by volume
rates: 0.05xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.81KBytes min, 3.90KBytes mean, and 9.46KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "applet".


14. Object '"other"'

contribution: 12.81% by count and 35.08% by volume
rates: 2.49xact/sec or 0.49Mbits/sec
totals: 0.00Mxact and 0.07GByte
response time: n/a min, n/a mean, and n/a max
response size: 7.67KBytes min, 25.31KBytes mean, and 67.94KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "other".


15. Object 'all content types'

contribution: 79.97% by count and 84.91% by volume
rates: 15.54xact/sec or 1.19Mbits/sec
totals: 0.02Mxact and 0.17GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.27KBytes min, 9.82KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all replies' class.




16. Object 'hits'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'hits and misses' class.




17. Object 'misses'

contribution: 79.97% by count and 84.91% by volume
rates: 15.54xact/sec or 1.19Mbits/sec
totals: 0.02Mxact and 0.17GByte
response time: 0.00msec min, 2565.05msec mean, and 22519.00msec max
response size: 0.27KBytes min, 9.82KBytes mean, and 1304.11KBytes max

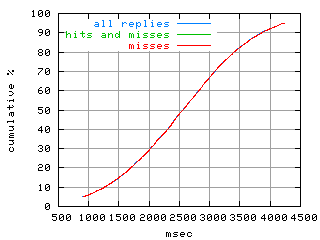

response time distribution
object.misses.rptm.fig.scope=sides=server__phases=dec1
object size distribution
object.misses.size.fig.scope=sides=server__phases=dec1
response time trace
object.misses.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'hits and misses' class.




18. Object 'hits and misses'

contribution: 79.97% by count and 84.91% by volume
rates: 15.54xact/sec or 1.19Mbits/sec
totals: 0.02Mxact and 0.17GByte
response time: 0.00msec min, 2565.05msec mean, and 22519.00msec max
response size: 0.27KBytes min, 9.82KBytes mean, and 1304.11KBytes max

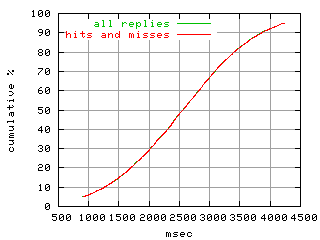

response time distribution
object.hits_and_misses.rptm.fig.scope=sides=server__phases=dec1

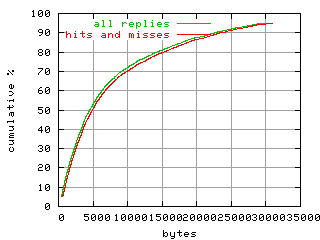

object size distribution
object.hits_and_misses.size.fig.scope=sides=server__phases=dec1

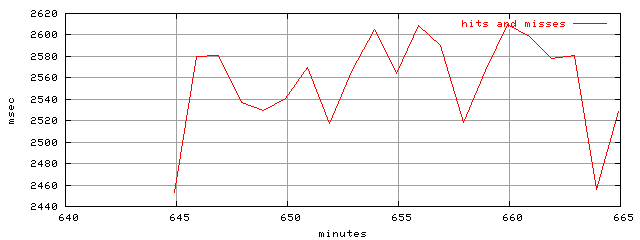

response time trace
object.hits_and_misses.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




19. Object 'ims/200'

contribution: 5.47% by count and 5.44% by volume
rates: 1.06xact/sec or 0.08Mbits/sec
totals: 0.00Mxact and 0.01GByte
response time: 1.00msec min, 2552.45msec mean, and 7748.00msec max
response size: 0.00KBytes min, 9.21KBytes mean, and 451.64KBytes max
response time distribution
object.ims_sc200.rptm.fig.scope=sides=server__phases=dec1
object size distribution
object.ims_sc200.size.fig.scope=sides=server__phases=dec1

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




20. Object 'ims/304'

contribution: 3.17% by count and 0.04% by volume
rates: 0.62xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 1.00msec min, 2480.56msec mean, and 5262.00msec max
response size: 0.06KBytes min, 0.11KBytes mean, and 0.13KBytes max
response time distribution
object.ims_sc304.rptm.fig.scope=sides=server__phases=dec1

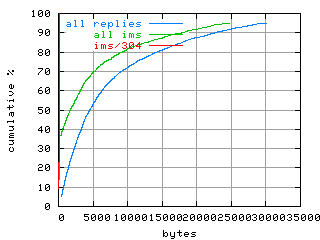

object size distribution
object.ims_sc304.size.fig.scope=sides=server__phases=dec1

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




21. Object 'all ims'

contribution: 8.63% by count and 5.48% by volume
rates: 1.68xact/sec or 0.08Mbits/sec
totals: 0.00Mxact and 0.01GByte
response time: 1.00msec min, 2526.08msec mean, and 7748.00msec max
response size: 0.00KBytes min, 5.87KBytes mean, and 451.64KBytes max

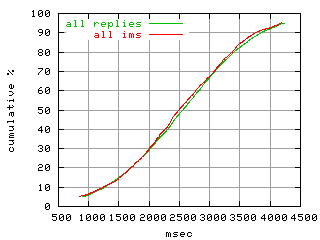

response time distribution
object.ims_scAll.rptm.fig.scope=sides=server__phases=dec1
object size distribution
object.ims_scAll.size.fig.scope=sides=server__phases=dec1

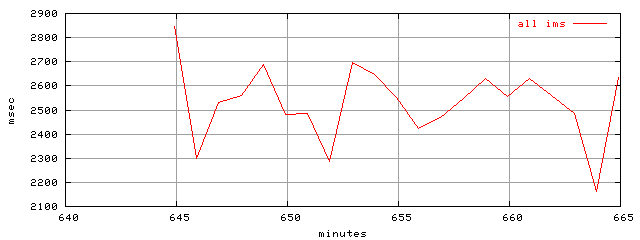

response time trace
object.ims_scAll.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




22. Object 'cachable'

contribution: 47.65% by count and 52.29% by volume
rates: 9.26xact/sec or 0.73Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: 0.00msec min, 2572.42msec mean, and 22519.00msec max
response size: 0.32KBytes min, 10.15KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

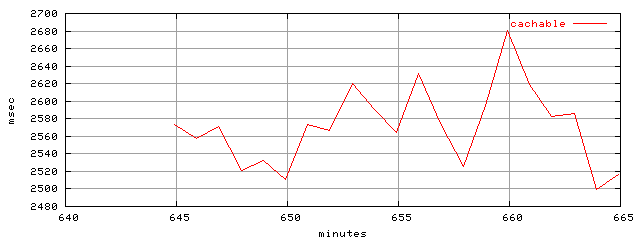

response time trace
object.cachable.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




23. Object 'not cachable'

contribution: 32.32% by count and 32.62% by volume
rates: 6.28xact/sec or 0.46Mbits/sec
totals: 0.01Mxact and 0.07GByte
response time: 0.00msec min, 2554.17msec mean, and 7492.00msec max
response size: 0.27KBytes min, 9.33KBytes mean, and 113.04KBytes max

No response time and size histograms were collected or stored for this object class.

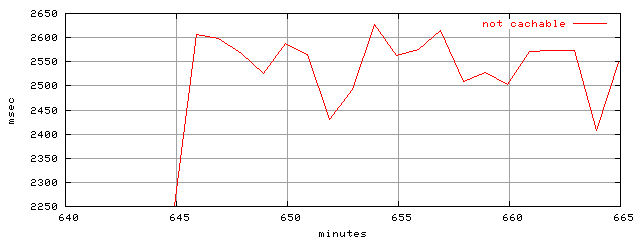

response time trace
object.uncachable.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




24. Object 'cachable and not'

contribution: 79.97% by count and 84.91% by volume
rates: 15.54xact/sec or 1.19Mbits/sec
totals: 0.02Mxact and 0.17GByte
response time: 0.00msec min, 2565.05msec mean, and 22519.00msec max
response size: 0.27KBytes min, 9.82KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

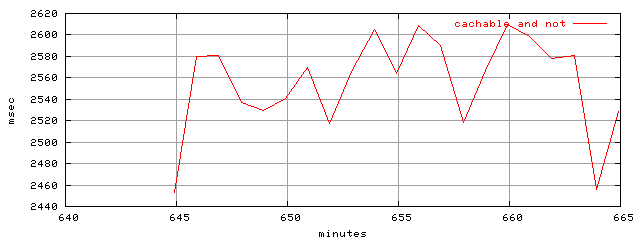

response time trace
object.all_cachable.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




25. Object 'fill'

contribution: 47.65% by count and 52.29% by volume
rates: 9.26xact/sec or 0.73Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: 0.00msec min, 2572.42msec mean, and 22519.00msec max
response size: 0.32KBytes min, 10.15KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

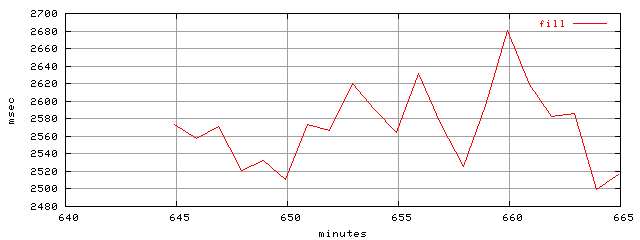

response time trace
object.fill.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




26. Object 'reload'

contribution: 10.62% by count and 8.59% by volume
rates: 2.06xact/sec or 0.12Mbits/sec
totals: 0.00Mxact and 0.02GByte
response time: 0.00msec min, 2587.21msec mean, and 23764.00msec max
response size: 0.00KBytes min, 7.48KBytes mean, and 1304.11KBytes max
response time distribution
object.reload.rptm.fig.scope=sides=server__phases=dec1
object size distribution
object.reload.size.fig.scope=sides=server__phases=dec1
response time trace
object.reload.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




27. Object 'abort'

contribution: 0.09% by count and 0.04% by volume
rates: 0.02xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 1055.00msec min, 2654.09msec mean, and 4209.00msec max
response size: 0.00KBytes min, 4.11KBytes mean, and 45.25KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.abort.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




28. Object 'redirected request'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




29. Object 'reply to redirect'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




30. Object 'HEAD'

contribution: 0.03% by count and 0.00% by volume
rates: 0.00xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2361.17msec mean, and 4043.00msec max
response size: 0.29KBytes min, 0.32KBytes mean, and 0.35KBytes max

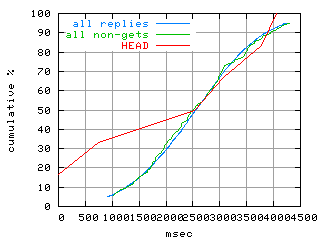

response time distribution
object.method_head.rptm.fig.scope=sides=server__phases=dec1

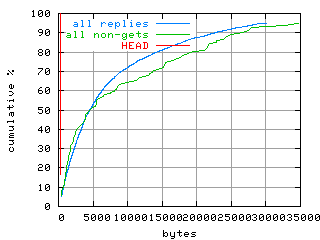

object size distribution
object.method_head.size.fig.scope=sides=server__phases=dec1

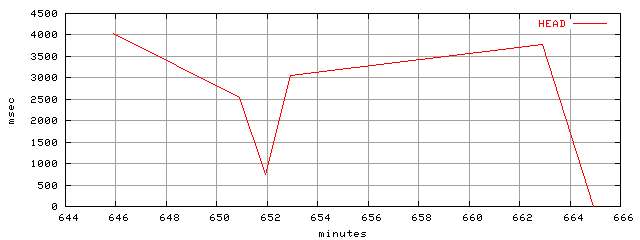

response time trace
object.method_head.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




31. Object 'POST'

contribution: 0.75% by count and 1.02% by volume
rates: 0.15xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 334.00msec min, 2867.83msec mean, and 49895.00msec max
response size: 0.36KBytes min, 12.53KBytes mean, and 451.64KBytes max

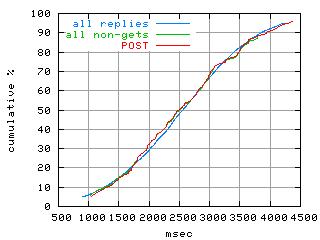

response time distribution
object.method_post.rptm.fig.scope=sides=server__phases=dec1

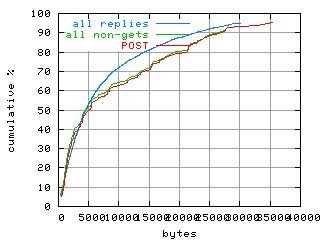

object size distribution
object.method_post.size.fig.scope=sides=server__phases=dec1

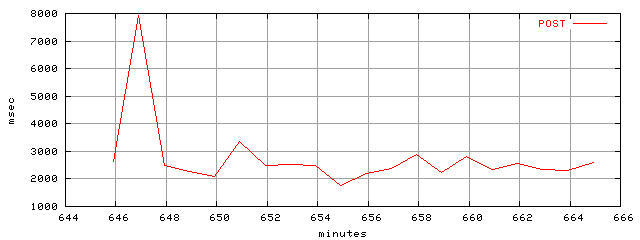

response time trace
object.method_post.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




32. Object 'PUT'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all non-gets' class.




33. Object 'all non-gets'

contribution: 0.77% by count and 1.02% by volume
rates: 0.15xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2851.04msec mean, and 49895.00msec max
response size: 0.29KBytes min, 12.13KBytes mean, and 451.64KBytes max

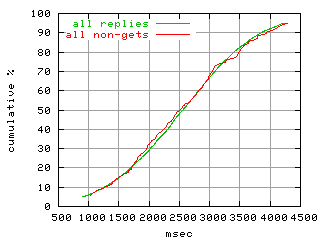

response time distribution
object.method_all.rptm.fig.scope=sides=server__phases=dec1

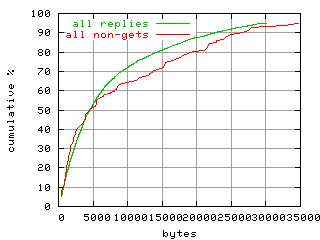

object size distribution
object.method_all.size.fig.scope=sides=server__phases=dec1
response time trace
object.method_all.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.

This object class belongs to the 'all replies' class.




34. Object 'all replies'

contribution: 100.00% by count and 100.00% by volume
rates: 19.43xact/sec or 1.40Mbits/sec
totals: 0.02Mxact and 0.21GByte
response time: 0.00msec min, 2566.25msec mean, and 49895.00msec max
response size: 0.00KBytes min, 9.25KBytes mean, and 1304.11KBytes max

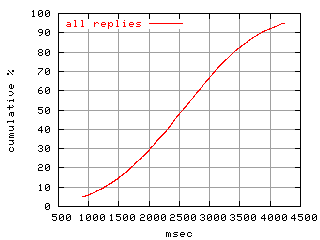

response time distribution
object.rep.rptm.fig.scope=sides=server__phases=dec1
object size distribution
object.rep.size.fig.scope=sides=server__phases=dec1

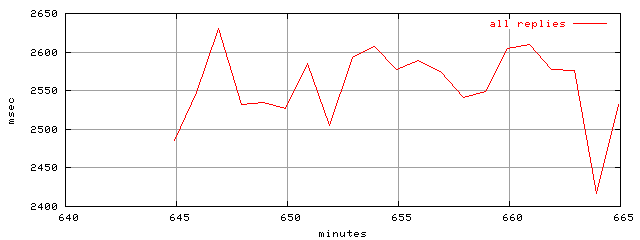

response time trace
object.rep.rptm.trace.scope=sides=server__phases=dec1

No description is available for this object class.
