2G-50-Writer-Retest: everything (scoped)
client side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
server side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
all sides baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
highlighted cell(s) above show current scope
links point to other scopes

1. Load

Load Count
(xact/sec)		 Volume
(Mbits/sec)
offered 9.65 0.78
measured 9.65 0.78

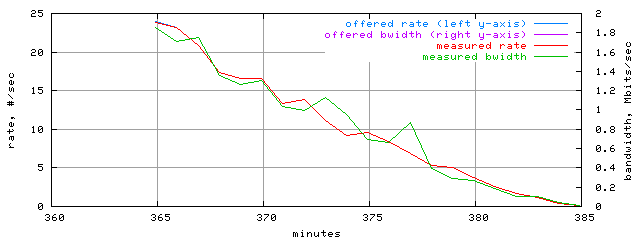

Load trace
load.trace.scope=sides=server__phases=fexit

The load table shows offered and measured load from server side point of view. Offered load statistics are based on the request stream. Measured load statistics are based on reply messages. The 'count' column depicts the number of requests or responses.

The 'volume' column is a little bit more tricky to interpret. Offered volume is reply bandwidth that would have been required to support offered load. This volume is computed as request rate multiplied by measured mean response size. Measured volume is the actual or measured reply bandwidth.




2. Hit Ratios

Hit Ratios DHR
(%)		 BHR
(%)
offered 0.00 0.00
measured 0.00 0.00

The server-side hit ratios should always be zero. If a request reaches a server, it is, by definition, a miss.

A better way to measure hit ratio is to compare client- and server-side traffic. A hit ratio table based on such a comparison is available elsewhere.




3. Concurrent HTTP transaction level table

Transaction state Number of times Mean concurrency level
entered left
active 11691.00 11692.00 0.23
waiting 0.00 0.00 0.00

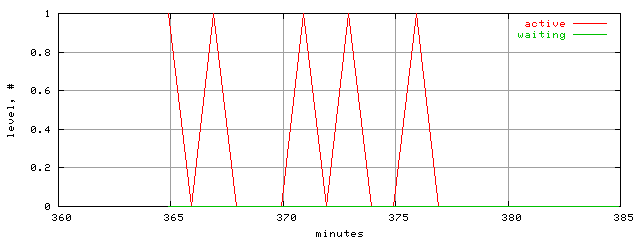

concurrent HTTP transaction level trace
xact.level.trace.scope=sides=server__phases=fexit

TBD.




4. Concurrent HTTP/TCP connection level table

Connection state Number of times Mean concurrency level
entered left
open 11640.00 11695.00 24.82
established 11640.00 11695.00 24.81

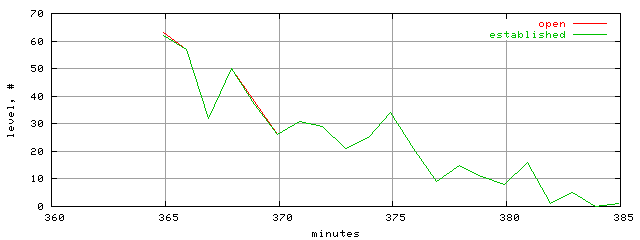

concurrent HTTP/TCP connection level trace
conn.level.trace.scope=sides=server__phases=fexit

TBD.




5. Population level table

Number of agents Mean population level
created destroyed
0.00 0.00 513.00

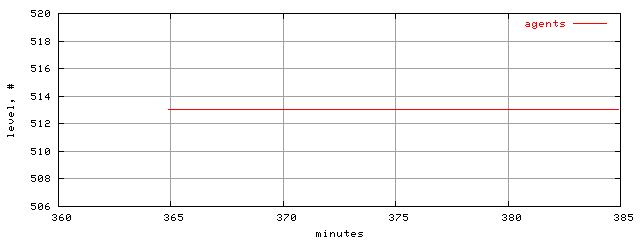

population level trace
populus.level.trace.scope=sides=server__phases=fexit

Populus is a set of all live robot or server agents. While alive, an agent may participate in HTTP transactions or remain idle.




6. Traffic stream table

Stream Contribution Rates Totals
Count
(%)		 Volume
(%)		 Count
(xact/sec)		 Volume
(Mbits/sec)		 Count
(xact,M)		 Volume
(Gbyte)
"foreign" 0.00 0.00 0.00 0.00 0.00 0.00
"image" 63.13 29.21 6.09 0.23 0.01 0.03
"HTML" 14.27 12.16 1.38 0.09 0.00 0.01
"download" 0.37 13.95 0.04 0.11 0.00 0.02
"applet" 0.27 0.12 0.03 0.00 0.00 0.00
"other" 16.53 40.63 1.59 0.32 0.00 0.05
all content types 94.57 96.08 9.12 0.75 0.01 0.11
hits 0.00 0.00 0.00 0.00 0.00 0.00
misses 94.57 96.08 9.12 0.75 0.01 0.11
hits and misses 94.57 96.08 9.12 0.75 0.01 0.11
ims/200 1.65 1.23 0.16 0.01 0.00 0.00
ims/304 0.70 0.01 0.07 0.00 0.00 0.00
all ims 2.35 1.24 0.23 0.01 0.00 0.00
cachable 71.25 73.09 6.87 0.57 0.01 0.08
not cachable 23.31 22.99 2.25 0.18 0.00 0.03
cachable and not 94.57 96.08 9.12 0.75 0.01 0.11
fill 71.25 73.09 6.87 0.57 0.01 0.08
reload 2.85 2.23 0.27 0.02 0.00 0.00
abort 0.07 0.02 0.01 0.00 0.00 0.00
redirected request 0.00 0.00 0.00 0.00 0.00 0.00
reply to redirect 0.00 0.00 0.00 0.00 0.00 0.00
HEAD 0.01 0.00 0.00 0.00 0.00 0.00
POST 0.22 0.46 0.02 0.00 0.00 0.00
PUT 0.00 0.00 0.00 0.00 0.00 0.00
all non-gets 0.23 0.46 0.02 0.00 0.00 0.00
all replies 100.00 100.00 9.64 0.78 0.01 0.11

The 'Stream' table provides count and volume statistics for many classes of transactions. The 'Contribution' columns show count- and volume-based portions of all transactions. The 'Rates' columns show throughput and bandwidth measurements. The 'Totals' columns contain the total number of transactions and the total volume (a sum of individual response sizes) for each stream.

Note that some streams are a combination of other streams. For example, the 'all ims' stream contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' stream) or '304 Not Modified' (the 'ims/304' stream) responses.

Many combination streams, such as 'all content types' or 'hits and misses' stream, contribute less than 100% because properties like content type or hit status are distinguished for 'basic' transactions only. A basic transactions is a simple HTTP GET request resulted in a '200 OK' response. Various special transactions such as IMS or aborts do not belong to the 'basic' category.

The 'Object' table contains corresponding response time and size statistics for streams.




7. Object kind table

Object Response time (msec) Size (KBytes)
Min Mean Max Min Mean Max
"foreign" n/a n/a n/a n/a n/a n/a
"image" n/a n/a n/a 0.27 4.77 45.63
"HTML" n/a n/a n/a 0.31 8.79 63.86
"download" n/a n/a n/a 18.30 390.90 1304.11
"applet" n/a n/a n/a 0.83 4.50 9.46
"other" n/a n/a n/a 7.69 25.35 67.97
all content types n/a n/a n/a 0.27 10.48 1304.11
hits n/a n/a n/a n/a n/a n/a
misses 1.00 2541.67 14143.00 0.27 10.48 1304.11
hits and misses 1.00 2541.67 14143.00 0.27 10.48 1304.11
ims/200 276.00 2480.54 5138.00 0.31 7.68 113.02
ims/304 2.00 2424.28 4934.00 0.06 0.10 0.13
all ims 2.00 2463.77 5138.00 0.06 5.42 113.02
cachable 1.00 2533.63 14143.00 0.33 10.58 1304.11
not cachable 1.00 2566.22 6166.00 0.27 10.17 451.73
cachable and not 1.00 2541.67 14143.00 0.27 10.48 1304.11
fill 1.00 2533.63 14143.00 0.33 10.58 1304.11
reload 2.00 2524.26 5252.00 0.32 8.07 113.04
abort 2.00 2038.37 4075.00 0.00 3.18 25.45
redirected request n/a n/a n/a n/a n/a n/a
reply to redirect n/a n/a n/a n/a n/a n/a
HEAD 1164.00 1164.00 1164.00 0.29 0.29 0.29
POST 901.00 2567.12 5206.00 0.40 21.28 234.29
PUT n/a n/a n/a n/a n/a n/a
all non-gets 901.00 2515.15 5206.00 0.29 20.50 234.29
all replies 1.00 2539.28 14143.00 0.06 10.31 1304.11

The 'Object' table provides response time and response size statistics for many classes of transactions.

Note that some classes are a combination of other classes. For example, the 'all ims' class contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' class) or '304 Not Modified' (the 'ims/304' class) responses.

Some statistics may not be available because either no objects of the corresponding class were seen during the test or no facilities to collect the stats exist for the class. The former can be verified using a 'Stream' table.




8. Errors

No errors detected in the given scope.


9. Object '"foreign"'

No instances of this object class were observed or recorded in the given scope.


This object class represents one of the content types specified in the PGL workload file and labeled there as "foreign".


10. Object '"image"'

contribution: 63.13% by count and 29.21% by volume
rates: 6.09xact/sec or 0.23Mbits/sec
totals: 0.01Mxact and 0.03GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.27KBytes min, 4.77KBytes mean, and 45.63KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "image".


11. Object '"HTML"'

contribution: 14.27% by count and 12.16% by volume
rates: 1.38xact/sec or 0.09Mbits/sec
totals: 0.00Mxact and 0.01GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.31KBytes min, 8.79KBytes mean, and 63.86KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "HTML".


12. Object '"download"'

contribution: 0.37% by count and 13.95% by volume
rates: 0.04xact/sec or 0.11Mbits/sec
totals: 0.00Mxact and 0.02GByte
response time: n/a min, n/a mean, and n/a max
response size: 18.30KBytes min, 390.90KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "download".


13. Object '"applet"'

contribution: 0.27% by count and 0.12% by volume
rates: 0.03xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.83KBytes min, 4.50KBytes mean, and 9.46KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "applet".


14. Object '"other"'

contribution: 16.53% by count and 40.63% by volume
rates: 1.59xact/sec or 0.32Mbits/sec
totals: 0.00Mxact and 0.05GByte
response time: n/a min, n/a mean, and n/a max
response size: 7.69KBytes min, 25.35KBytes mean, and 67.97KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "other".


15. Object 'all content types'

contribution: 94.57% by count and 96.08% by volume
rates: 9.12xact/sec or 0.75Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.27KBytes min, 10.48KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all replies' class.




16. Object 'hits'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'hits and misses' class.




17. Object 'misses'

contribution: 94.57% by count and 96.08% by volume
rates: 9.12xact/sec or 0.75Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: 1.00msec min, 2541.67msec mean, and 14143.00msec max
response size: 0.27KBytes min, 10.48KBytes mean, and 1304.11KBytes max

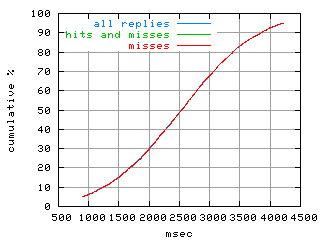

response time distribution
object.misses.rptm.fig.scope=sides=server__phases=fexit

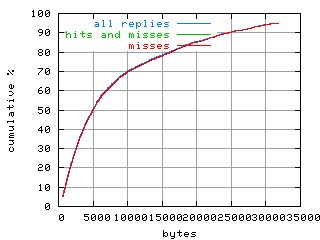

object size distribution
object.misses.size.fig.scope=sides=server__phases=fexit

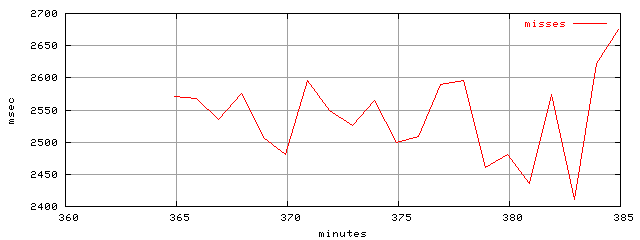

response time trace
object.misses.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'hits and misses' class.




18. Object 'hits and misses'

contribution: 94.57% by count and 96.08% by volume
rates: 9.12xact/sec or 0.75Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: 1.00msec min, 2541.67msec mean, and 14143.00msec max
response size: 0.27KBytes min, 10.48KBytes mean, and 1304.11KBytes max

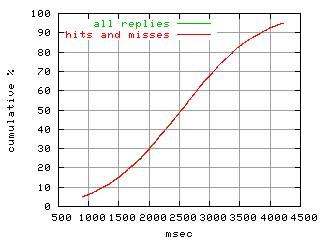

response time distribution
object.hits_and_misses.rptm.fig.scope=sides=server__phases=fexit

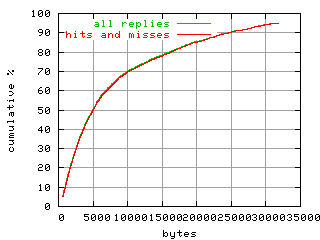

object size distribution
object.hits_and_misses.size.fig.scope=sides=server__phases=fexit

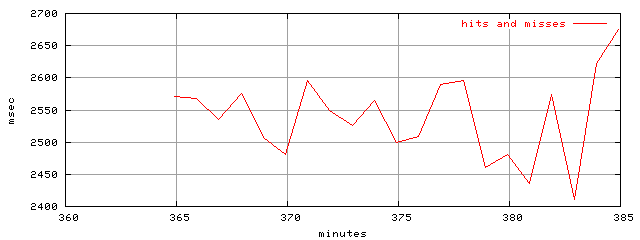

response time trace
object.hits_and_misses.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




19. Object 'ims/200'

contribution: 1.65% by count and 1.23% by volume
rates: 0.16xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 276.00msec min, 2480.54msec mean, and 5138.00msec max
response size: 0.31KBytes min, 7.68KBytes mean, and 113.02KBytes max

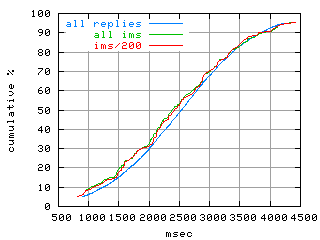

response time distribution
object.ims_sc200.rptm.fig.scope=sides=server__phases=fexit

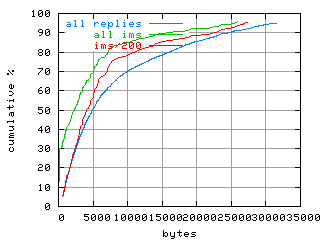

object size distribution
object.ims_sc200.size.fig.scope=sides=server__phases=fexit

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




20. Object 'ims/304'

contribution: 0.70% by count and 0.01% by volume
rates: 0.07xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2424.28msec mean, and 4934.00msec max
response size: 0.06KBytes min, 0.10KBytes mean, and 0.13KBytes max

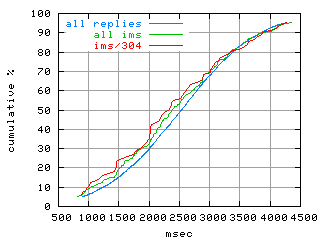

response time distribution
object.ims_sc304.rptm.fig.scope=sides=server__phases=fexit

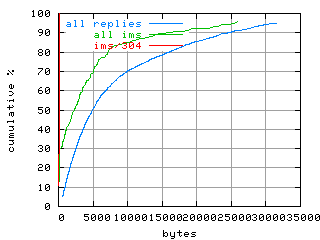

object size distribution
object.ims_sc304.size.fig.scope=sides=server__phases=fexit

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




21. Object 'all ims'

contribution: 2.35% by count and 1.24% by volume
rates: 0.23xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2463.77msec mean, and 5138.00msec max
response size: 0.06KBytes min, 5.42KBytes mean, and 113.02KBytes max

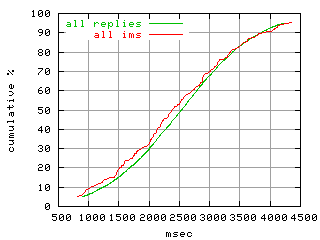

response time distribution
object.ims_scAll.rptm.fig.scope=sides=server__phases=fexit

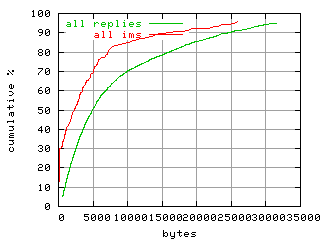

object size distribution
object.ims_scAll.size.fig.scope=sides=server__phases=fexit

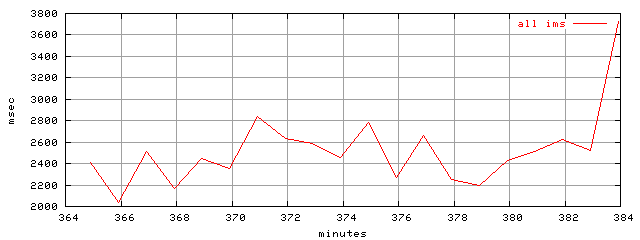

response time trace
object.ims_scAll.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




22. Object 'cachable'

contribution: 71.25% by count and 73.09% by volume
rates: 6.87xact/sec or 0.57Mbits/sec
totals: 0.01Mxact and 0.08GByte
response time: 1.00msec min, 2533.63msec mean, and 14143.00msec max
response size: 0.33KBytes min, 10.58KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.cachable.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




23. Object 'not cachable'

contribution: 23.31% by count and 22.99% by volume
rates: 2.25xact/sec or 0.18Mbits/sec
totals: 0.00Mxact and 0.03GByte
response time: 1.00msec min, 2566.22msec mean, and 6166.00msec max
response size: 0.27KBytes min, 10.17KBytes mean, and 451.73KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.uncachable.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




24. Object 'cachable and not'

contribution: 94.57% by count and 96.08% by volume
rates: 9.12xact/sec or 0.75Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: 1.00msec min, 2541.67msec mean, and 14143.00msec max
response size: 0.27KBytes min, 10.48KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.all_cachable.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




25. Object 'fill'

contribution: 71.25% by count and 73.09% by volume
rates: 6.87xact/sec or 0.57Mbits/sec
totals: 0.01Mxact and 0.08GByte
response time: 1.00msec min, 2533.63msec mean, and 14143.00msec max
response size: 0.33KBytes min, 10.58KBytes mean, and 1304.11KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.fill.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




26. Object 'reload'

contribution: 2.85% by count and 2.23% by volume
rates: 0.27xact/sec or 0.02Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2524.26msec mean, and 5252.00msec max
response size: 0.32KBytes min, 8.07KBytes mean, and 113.04KBytes max
response time distribution
object.reload.rptm.fig.scope=sides=server__phases=fexit
object size distribution
object.reload.size.fig.scope=sides=server__phases=fexit
response time trace
object.reload.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




27. Object 'abort'

contribution: 0.07% by count and 0.02% by volume
rates: 0.01xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 2.00msec min, 2038.37msec mean, and 4075.00msec max
response size: 0.00KBytes min, 3.18KBytes mean, and 25.45KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.abort.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




28. Object 'redirected request'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




29. Object 'reply to redirect'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




30. Object 'HEAD'

contribution: 0.01% by count and 0.00% by volume
rates: 0.00xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 1164.00msec min, 1164.00msec mean, and 1164.00msec max
response size: 0.29KBytes min, 0.29KBytes mean, and 0.29KBytes max
response time distribution
object.method_head.rptm.fig.scope=sides=server__phases=fexit
object size distribution
object.method_head.size.fig.scope=sides=server__phases=fexit
response time trace
object.method_head.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




31. Object 'POST'

contribution: 0.22% by count and 0.46% by volume
rates: 0.02xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 901.00msec min, 2567.12msec mean, and 5206.00msec max
response size: 0.40KBytes min, 21.28KBytes mean, and 234.29KBytes max
response time distribution
object.method_post.rptm.fig.scope=sides=server__phases=fexit
object size distribution
object.method_post.size.fig.scope=sides=server__phases=fexit
response time trace
object.method_post.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




32. Object 'PUT'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all non-gets' class.




33. Object 'all non-gets'

contribution: 0.23% by count and 0.46% by volume
rates: 0.02xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 901.00msec min, 2515.15msec mean, and 5206.00msec max
response size: 0.29KBytes min, 20.50KBytes mean, and 234.29KBytes max
response time distribution
object.method_all.rptm.fig.scope=sides=server__phases=fexit
object size distribution
object.method_all.size.fig.scope=sides=server__phases=fexit
response time trace
object.method_all.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.

This object class belongs to the 'all replies' class.




34. Object 'all replies'

contribution: 100.00% by count and 100.00% by volume
rates: 9.64xact/sec or 0.78Mbits/sec
totals: 0.01Mxact and 0.11GByte
response time: 1.00msec min, 2539.28msec mean, and 14143.00msec max
response size: 0.06KBytes min, 10.31KBytes mean, and 1304.11KBytes max
response time distribution
object.rep.rptm.fig.scope=sides=server__phases=fexit
object size distribution
object.rep.size.fig.scope=sides=server__phases=fexit
response time trace
object.rep.rptm.trace.scope=sides=server__phases=fexit

No description is available for this object class.
