8G-Writer: everything (scoped)
client side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
server side baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2 cold
all sides baseline all phases framp fill fexit inc1 top1 dec1 idle inc2 top2 dec2
highlighted cell(s) above show current scope
links point to other scopes

1. Load

Load Count
(xact/sec)		 Volume
(Mbits/sec)
offered 26.14 1.67
measured 26.14 1.66
Load trace
load.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

The load table shows offered and measured load from client side point of view. Offered load statistics are based on the request stream. Measured load statistics are based on reply messages. The 'count' column depicts the number of requests or responses.

The 'volume' column is a little bit more tricky to interpret. Offered volume is reply bandwidth that would have been required to support offered load. This volume is computed as request rate multiplied by measured mean response size. Measured volume is the actual or measured reply bandwidth.




2. Hit Ratios

Hit Ratios DHR
(%)		 BHR
(%)
offered 46.95 29.86
measured 34.26 22.02

The hit ratios table shows offered and measured hit ratios from client side point of view. Polygraph counts every repeated request to a cachable object as an offered hit. Measured (cache) hits are detected using Polygraph-specific headers. All hits are counted for 'basic' transactions only (simple HTTP GET requests with '200 OK' responses).

DHR, Document Hit Ratio, is the ratio of the total number of hits to the number of all basic transactions (hits and misses). BHR, Byte Hit Ratio, is the ratio of the total volume (a sum of response sizes) of hits to the total volume of all basic transactions.

A better way to measure hit ratio is to compare client- and server-side traffic. A hit ratio table based on such a comparison is available elsewhere.




3. Concurrent HTTP transaction level table

Transaction state Number of times Mean concurrency level
entered left
active 1237825.00 1237818.00 58.97
waiting 578921.00 578921.00 30.85
concurrent HTTP transaction level trace
xact.level.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

TBD.




4. Concurrent HTTP/TCP connection level table

Connection state Number of times Mean concurrency level
entered left
open 554180.00 554173.00 107.01
established 554180.00 554173.00 106.90
concurrent HTTP/TCP connection level trace
conn.level.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

TBD.




5. Population level table

Number of agents Mean population level
created destroyed
204.00 203.00 5.55
population level trace
populus.level.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

Populus is a set of all live robot or server agents. While alive, an agent may participate in HTTP transactions or remain idle.




6. Traffic stream table

Stream Contribution Rates Totals
Count
(%)		 Volume
(%)		 Count
(xact/sec)		 Volume
(Mbits/sec)		 Count
(xact,M)		 Volume
(Gbyte)
"foreign" 0.00 0.00 0.00 0.00 0.00 0.00
"image" 63.23 37.69 16.44 0.63 0.78 3.62
"HTML" 14.47 10.25 3.76 0.17 0.18 0.98
"download" 0.34 10.86 0.09 0.18 0.00 1.04
"applet" 0.23 0.21 0.06 0.00 0.00 0.02
"other" 10.29 32.25 2.68 0.54 0.13 3.09
all content types 88.56 91.27 23.03 1.51 1.09 8.76
hits 30.34 20.09 7.89 0.33 0.37 1.93
misses 58.22 71.17 15.14 1.18 0.72 6.83
hits and misses 88.56 91.27 23.03 1.51 1.09 8.76
ims/200 4.45 4.20 1.16 0.07 0.05 0.40
ims/304 2.28 0.04 0.59 0.00 0.03 0.00
all ims 6.73 4.24 1.75 0.07 0.08 0.41
cachable 70.68 68.35 18.38 1.13 0.87 6.56
not cachable 17.87 22.91 4.65 0.38 0.22 2.20
cachable and not 88.56 91.27 23.03 1.51 1.09 8.76
fill 40.34 48.26 10.49 0.80 0.50 4.63
reload 4.42 4.00 1.15 0.07 0.05 0.38
abort 0.06 0.04 0.02 0.00 0.00 0.00
redirected request 0.00 0.00 0.00 0.00 0.00 0.00
reply to redirect 0.00 0.00 0.00 0.00 0.00 0.00
HEAD 0.02 0.00 0.00 0.00 0.00 0.00
POST 0.28 0.50 0.07 0.01 0.00 0.05
PUT 0.00 0.00 0.00 0.00 0.00 0.00
all non-gets 0.30 0.50 0.08 0.01 0.00 0.05
all replies 100.00 100.00 26.00 1.66 1.23 9.59

The 'Stream' table provides count and volume statistics for many classes of transactions. The 'Contribution' columns show count- and volume-based portions of all transactions. The 'Rates' columns show throughput and bandwidth measurements. The 'Totals' columns contain the total number of transactions and the total volume (a sum of individual response sizes) for each stream.

Note that some streams are a combination of other streams. For example, the 'all ims' stream contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' stream) or '304 Not Modified' (the 'ims/304' stream) responses.

Many combination streams, such as 'all content types' or 'hits and misses' stream, contribute less than 100% because properties like content type or hit status are distinguished for 'basic' transactions only. A basic transactions is a simple HTTP GET request resulted in a '200 OK' response. Various special transactions such as IMS or aborts do not belong to the 'basic' category.

The 'Object' table contains corresponding response time and size statistics for streams.




7. Object kind table

Object Response time (msec) Size (KBytes)
Min Mean Max Min Mean Max
"foreign" n/a n/a n/a n/a n/a n/a
"image" n/a n/a n/a 0.32 4.87 53.67
"HTML" n/a n/a n/a 0.39 5.79 77.77
"download" n/a n/a n/a 48.12 263.41 818.06
"applet" n/a n/a n/a 2.98 7.46 9.53
"other" n/a n/a n/a 4.27 25.60 75.94
all content types n/a n/a n/a 0.32 8.42 818.06
hits 3.00 1269.38 88482.00 0.41 5.41 818.03
misses 7.00 2708.50 85217.00 0.32 9.99 818.06
hits and misses 3.00 2215.42 88482.00 0.32 8.42 818.06
ims/200 3.00 2068.21 86221.00 0.32 7.72 818.03
ims/304 2.00 2041.79 86231.00 0.00 0.13 0.16
all ims 2.00 2059.26 86231.00 0.00 5.15 818.03
cachable 3.00 2094.50 88482.00 0.37 7.90 818.06
not cachable 7.00 2693.61 80166.00 0.32 10.47 236.46
cachable and not 3.00 2215.42 88482.00 0.32 8.42 818.06
fill 7.00 2715.09 85217.00 0.37 9.77 818.06
reload 7.00 2626.58 9518.00 0.32 7.39 818.01
abort 5016.00 7651.12 12287.00 0.33 5.24 183.63
redirected request n/a n/a n/a n/a n/a n/a
reply to redirect n/a n/a n/a n/a n/a n/a
HEAD 3.00 2103.65 7954.00 0.32 0.38 0.42
POST 0.00 2690.88 8577.00 0.00 14.56 818.01
PUT n/a n/a n/a n/a n/a n/a
all non-gets 0.00 2655.14 8577.00 0.00 13.70 818.01
all replies 0.00 2224.39 88482.00 0.00 8.17 818.06

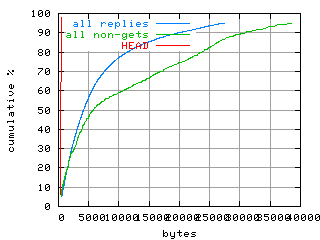

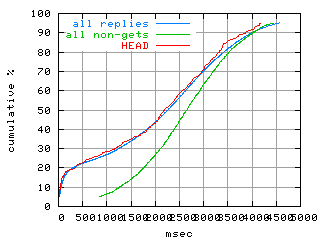

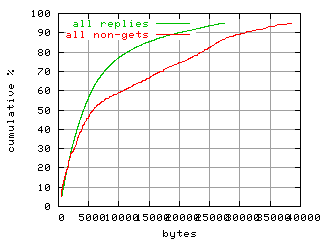

The 'Object' table provides response time and response size statistics for many classes of transactions.

Note that some classes are a combination of other classes. For example, the 'all ims' class contains transactions with If-Modified-Since requests that resulted in either '200 OK' (the 'ims/304' class) or '304 Not Modified' (the 'ims/304' class) responses.

Some statistics may not be available because either no objects of the corresponding class were seen during the test or no facilities to collect the stats exist for the class. The former can be verified using a 'Stream' table.




8. Errors

The total of 3587 errors detected. Out of those errors, 3587xact or 0.29% of all transactions were classified as transaction errors.

Error Count Contribution (%)
(c17) connection closed before sending headers 3579 99.78
(c14) premature end of msg body 5 0.14
(c58) message content checksum mismatch 2 0.06
(c19) unsupported HTTP status code 1 0.03

The 'Errors' table shows detected errors. For each error type, the number of errors and their contribution towards total error count are shown.




9. Object '"foreign"'

No instances of this object class were observed or recorded in the given scope.


This object class represents one of the content types specified in the PGL workload file and labeled there as "foreign".


10. Object '"image"'

contribution: 63.23% by count and 37.69% by volume
rates: 16.44xact/sec or 0.63Mbits/sec
totals: 0.78Mxact and 3.62GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.32KBytes min, 4.87KBytes mean, and 53.67KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "image".


11. Object '"HTML"'

contribution: 14.47% by count and 10.25% by volume
rates: 3.76xact/sec or 0.17Mbits/sec
totals: 0.18Mxact and 0.98GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.39KBytes min, 5.79KBytes mean, and 77.77KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "HTML".


12. Object '"download"'

contribution: 0.34% by count and 10.86% by volume
rates: 0.09xact/sec or 0.18Mbits/sec
totals: 0.00Mxact and 1.04GByte
response time: n/a min, n/a mean, and n/a max
response size: 48.12KBytes min, 263.41KBytes mean, and 818.06KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "download".


13. Object '"applet"'

contribution: 0.23% by count and 0.21% by volume
rates: 0.06xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.02GByte
response time: n/a min, n/a mean, and n/a max
response size: 2.98KBytes min, 7.46KBytes mean, and 9.53KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "applet".


14. Object '"other"'

contribution: 10.29% by count and 32.25% by volume
rates: 2.68xact/sec or 0.54Mbits/sec
totals: 0.13Mxact and 3.09GByte
response time: n/a min, n/a mean, and n/a max
response size: 4.27KBytes min, 25.60KBytes mean, and 75.94KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


This object class represents one of the content types specified in the PGL workload file and labeled there as "other".


15. Object 'all content types'

contribution: 88.56% by count and 91.27% by volume
rates: 23.03xact/sec or 1.51Mbits/sec
totals: 1.09Mxact and 8.76GByte
response time: n/a min, n/a mean, and n/a max
response size: 0.32KBytes min, 8.42KBytes mean, and 818.06KBytes max

No response time and size histograms were collected or stored for this object class.

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all replies' class.




16. Object 'hits'

contribution: 30.34% by count and 20.09% by volume
rates: 7.89xact/sec or 0.33Mbits/sec
totals: 0.37Mxact and 1.93GByte
response time: 3.00msec min, 1269.38msec mean, and 88482.00msec max
response size: 0.41KBytes min, 5.41KBytes mean, and 818.03KBytes max
response time distribution
object.hits.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

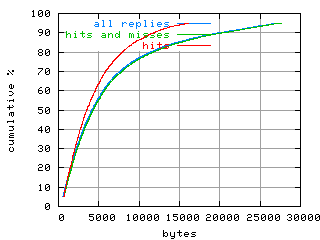

object size distribution
object.hits.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.hits.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'hits and misses' class.




17. Object 'misses'

contribution: 58.22% by count and 71.17% by volume
rates: 15.14xact/sec or 1.18Mbits/sec
totals: 0.72Mxact and 6.83GByte
response time: 7.00msec min, 2708.50msec mean, and 85217.00msec max
response size: 0.32KBytes min, 9.99KBytes mean, and 818.06KBytes max
response time distribution
object.misses.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.misses.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.misses.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'hits and misses' class.

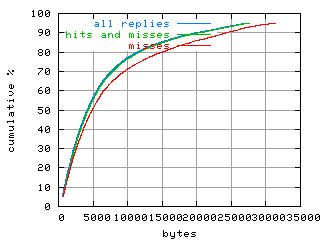

18. Object 'hits and misses'

contribution: 88.56% by count and 91.27% by volume
rates: 23.03xact/sec or 1.51Mbits/sec
totals: 1.09Mxact and 8.76GByte
response time: 3.00msec min, 2215.42msec mean, and 88482.00msec max
response size: 0.32KBytes min, 8.42KBytes mean, and 818.06KBytes max
response time distribution
object.hits_and_misses.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

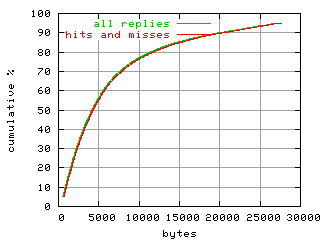

object size distribution
object.hits_and_misses.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.hits_and_misses.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




19. Object 'ims/200'

contribution: 4.45% by count and 4.20% by volume
rates: 1.16xact/sec or 0.07Mbits/sec
totals: 0.05Mxact and 0.40GByte
response time: 3.00msec min, 2068.21msec mean, and 86221.00msec max
response size: 0.32KBytes min, 7.72KBytes mean, and 818.03KBytes max

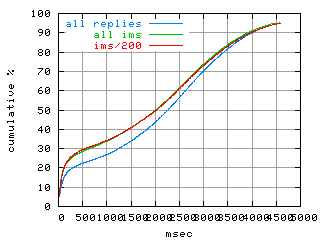

response time distribution
object.ims_sc200.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.ims_sc200.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




20. Object 'ims/304'

contribution: 2.28% by count and 0.04% by volume
rates: 0.59xact/sec or 0.00Mbits/sec
totals: 0.03Mxact and 0.00GByte
response time: 2.00msec min, 2041.79msec mean, and 86231.00msec max
response size: 0.00KBytes min, 0.13KBytes mean, and 0.16KBytes max

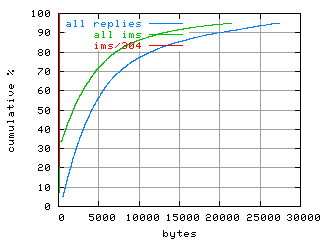

response time distribution
object.ims_sc304.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.ims_sc304.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No response time and size traces are collected for this object class.


No description is available for this object class.

This object class belongs to the 'all ims' class.




21. Object 'all ims'

contribution: 6.73% by count and 4.24% by volume
rates: 1.75xact/sec or 0.07Mbits/sec
totals: 0.08Mxact and 0.41GByte
response time: 2.00msec min, 2059.26msec mean, and 86231.00msec max
response size: 0.00KBytes min, 5.15KBytes mean, and 818.03KBytes max

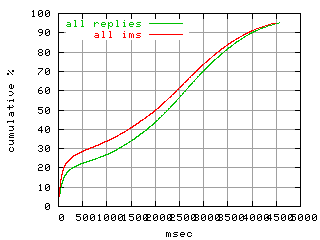

response time distribution
object.ims_scAll.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.ims_scAll.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

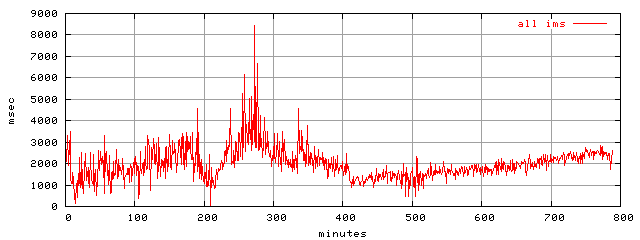

response time trace
object.ims_scAll.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




22. Object 'cachable'

contribution: 70.68% by count and 68.35% by volume
rates: 18.38xact/sec or 1.13Mbits/sec
totals: 0.87Mxact and 6.56GByte
response time: 3.00msec min, 2094.50msec mean, and 88482.00msec max
response size: 0.37KBytes min, 7.90KBytes mean, and 818.06KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.cachable.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




23. Object 'not cachable'

contribution: 17.87% by count and 22.91% by volume
rates: 4.65xact/sec or 0.38Mbits/sec
totals: 0.22Mxact and 2.20GByte
response time: 7.00msec min, 2693.61msec mean, and 80166.00msec max
response size: 0.32KBytes min, 10.47KBytes mean, and 236.46KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.uncachable.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'cachable and not' class.




24. Object 'cachable and not'

contribution: 88.56% by count and 91.27% by volume
rates: 23.03xact/sec or 1.51Mbits/sec
totals: 1.09Mxact and 8.76GByte
response time: 3.00msec min, 2215.42msec mean, and 88482.00msec max
response size: 0.32KBytes min, 8.42KBytes mean, and 818.06KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.all_cachable.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




25. Object 'fill'

contribution: 40.34% by count and 48.26% by volume
rates: 10.49xact/sec or 0.80Mbits/sec
totals: 0.50Mxact and 4.63GByte
response time: 7.00msec min, 2715.09msec mean, and 85217.00msec max
response size: 0.37KBytes min, 9.77KBytes mean, and 818.06KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.fill.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




26. Object 'reload'

contribution: 4.42% by count and 4.00% by volume
rates: 1.15xact/sec or 0.07Mbits/sec
totals: 0.05Mxact and 0.38GByte
response time: 7.00msec min, 2626.58msec mean, and 9518.00msec max
response size: 0.32KBytes min, 7.39KBytes mean, and 818.01KBytes max
response time distribution
object.reload.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.reload.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.reload.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




27. Object 'abort'

contribution: 0.06% by count and 0.04% by volume
rates: 0.02xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 5016.00msec min, 7651.12msec mean, and 12287.00msec max
response size: 0.33KBytes min, 5.24KBytes mean, and 183.63KBytes max

No response time and size histograms were collected or stored for this object class.

response time trace
object.abort.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




28. Object 'redirected request'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




29. Object 'reply to redirect'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all replies' class.




30. Object 'HEAD'

contribution: 0.02% by count and 0.00% by volume
rates: 0.00xact/sec or 0.00Mbits/sec
totals: 0.00Mxact and 0.00GByte
response time: 3.00msec min, 2103.65msec mean, and 7954.00msec max
response size: 0.32KBytes min, 0.38KBytes mean, and 0.42KBytes max
response time distribution
object.method_head.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.method_head.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.method_head.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




31. Object 'POST'

contribution: 0.28% by count and 0.50% by volume
rates: 0.07xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.05GByte
response time: 0.00msec min, 2690.88msec mean, and 8577.00msec max
response size: 0.00KBytes min, 14.56KBytes mean, and 818.01KBytes max

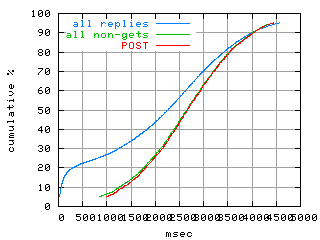

response time distribution
object.method_post.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.method_post.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

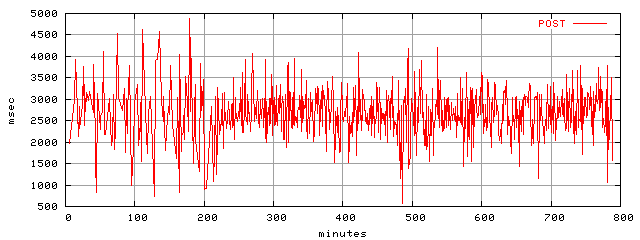

response time trace
object.method_post.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all non-gets' class.




32. Object 'PUT'

No instances of this object class were observed or recorded in the given scope.


No description is available for this object class.

This object class belongs to the 'all non-gets' class.




33. Object 'all non-gets'

contribution: 0.30% by count and 0.50% by volume
rates: 0.08xact/sec or 0.01Mbits/sec
totals: 0.00Mxact and 0.05GByte
response time: 0.00msec min, 2655.14msec mean, and 8577.00msec max
response size: 0.00KBytes min, 13.70KBytes mean, and 818.01KBytes max

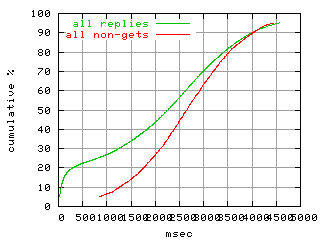

response time distribution
object.method_all.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
object size distribution
object.method_all.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.method_all.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.

This object class belongs to the 'all replies' class.




34. Object 'all replies'

contribution: 100.00% by count and 100.00% by volume
rates: 26.00xact/sec or 1.66Mbits/sec
totals: 1.23Mxact and 9.59GByte
response time: 0.00msec min, 2224.39msec mean, and 88482.00msec max
response size: 0.00KBytes min, 8.17KBytes mean, and 818.06KBytes max
response time distribution
object.rep.rptm.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

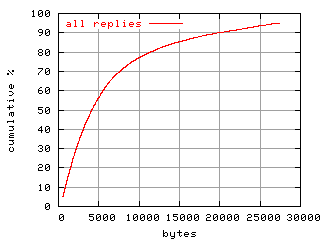

object size distribution
object.rep.size.fig.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2
response time trace
object.rep.rptm.trace.scope=sides=client__phases=framp,fill,fexit,inc1,top1,dec1,idle,inc2,top2,dec2

No description is available for this object class.
